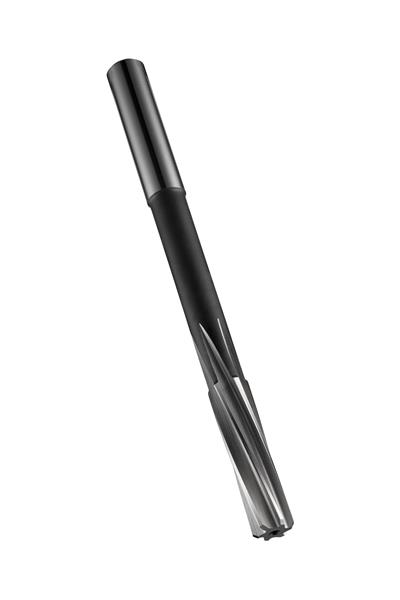

11.99 mm Cobalt (HSS-E) Bright Finish Straight Shank B+ Flute Type Centesimal Cylindrical Machine Chucking Reamer
- Item Code: 5986933
- Brand: Dormer
- Unit Size: 1
Description
Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 11.99mm with an overall length of 151mm, a flute length of 44mm and 105mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 12M6, 12M7 or 12M8, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Metric Diameter | 11.99 mm |
|---|---|
| Overall Length Decimal | 5.9449" |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Material | Cobalt |
| Overall Length Metric | 151.00 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 6 |
| Decimal Diameter | 0.4720" |
