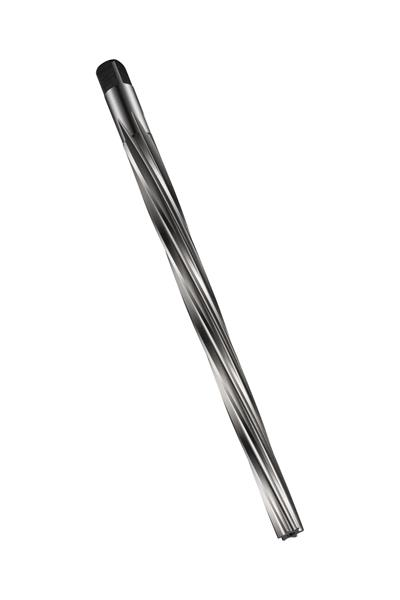

3.00 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986938
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 2.90mm with an overall length of 80mm, a flute length of 58mm and 4.06mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 3.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Material | High Speed Steel |
|---|---|
| Number of Flutes | 5 |
| Cutting Direction | Right |
| Coating/Finish | Bright |
| Overall Length Decimal | 3.1496" |
| Overall Length Metric | 80.00 mm |
| Small End Diameter | 2.90 mm |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
| Taper Pin Size | 3.00 mm |
