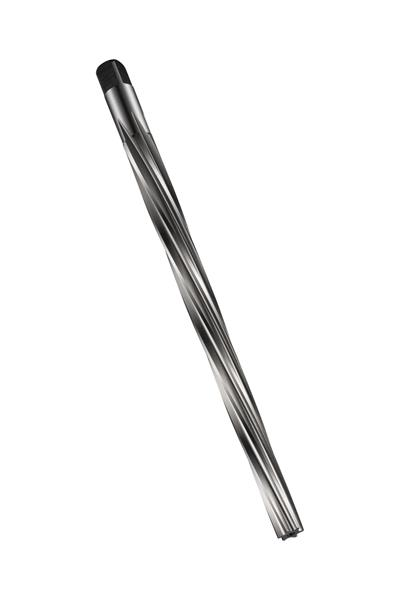

3.50 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986941
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 3.40mm with an overall length of 87mm, a flute length of 63mm and 4.66mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 3.50mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Decimal | 3.4252" |
|---|---|
| Small End Diameter | 3.40 mm |
| Taper Pin Size | 3.50 mm |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 5 |
| Overall Length Metric | 87.00 mm |
| Material | High Speed Steel |
| Brand | Dormer |
