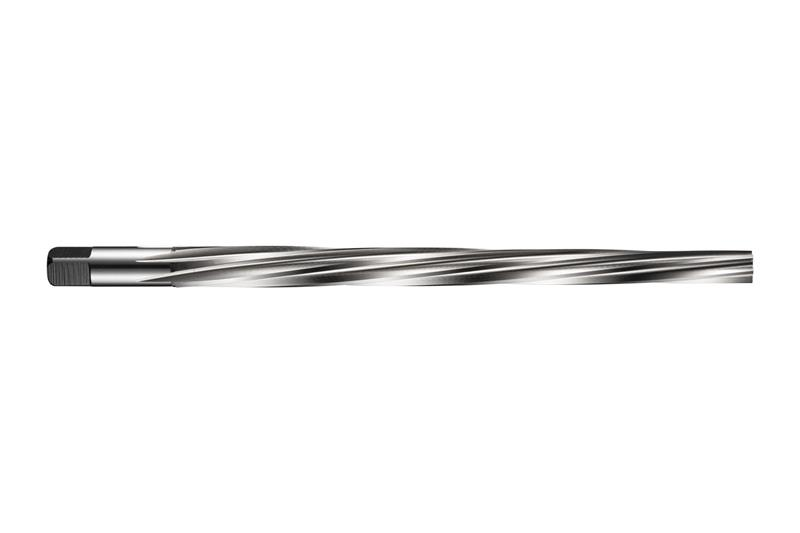

40.00 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986953
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 39.70mm with an overall length of 430mm, a flute length of 340mm and 46.50mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 40.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Metric | 430.00 mm |
|---|---|
| Small End Diameter | 39.70 mm |
| Taper Pin Size | 40.00 mm |
| Material | High Speed Steel |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Overall Length Decimal | 16.9291" |
| Brand | Dormer |
| Number of Flutes | 12 |
