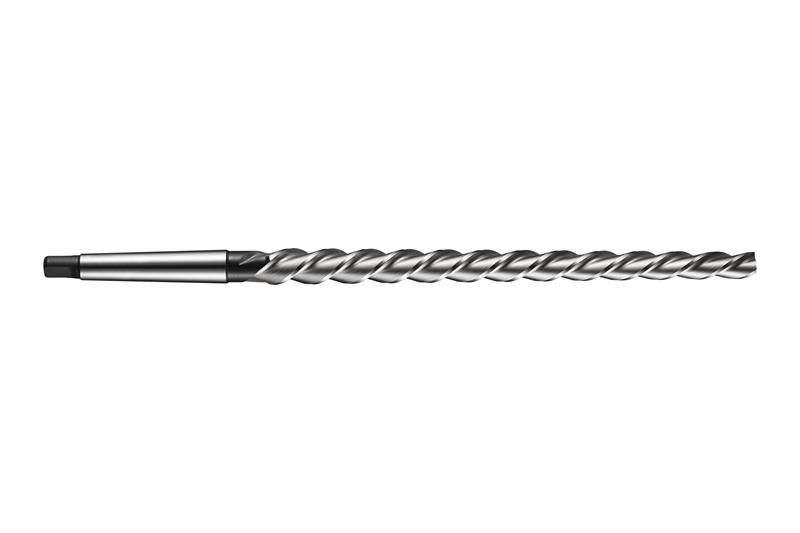

7.00 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986974
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 6.90mm with an overall length of 160mm, a flute length of 125mm and 9.40mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 7.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Small End Diameter | 6.90 mm |
|---|---|
| Taper Pin Size | 7.00 mm |
| Brand | Dormer |
| Coating/Finish | Bright |
| Overall Length Metric | 160.00 mm |
| Shank Style | Cylindrical shank with Square |
| Material | High Speed Steel |
| Overall Length Decimal | 6.2992" |
| Cutting Direction | Right |
| Number of Flutes | 6 |
