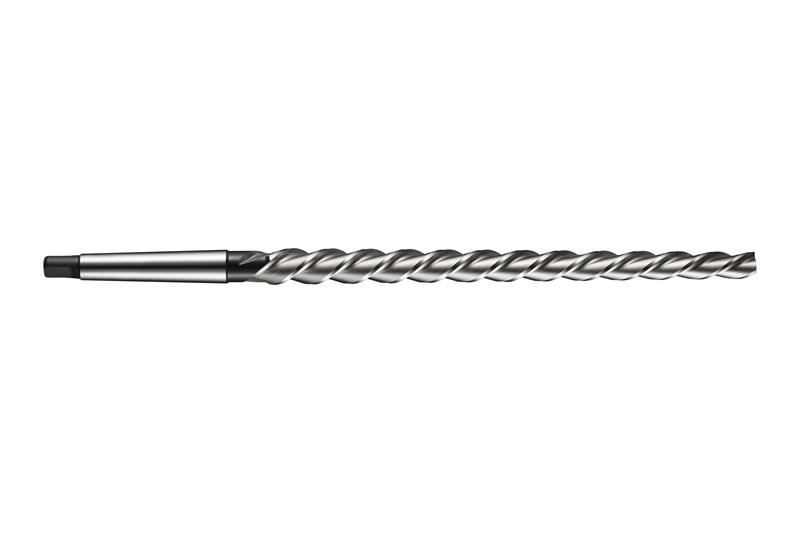

9.00 mm HSS Bright Finish Square Shank B+ Flute Conical Square Drive Taper Pin Hand Reamer
- Item Code: 5986982
- Brand: Dormer
- Unit Size: 1
Description
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 8.90mm with an overall length of 195mm, a flute length of 160mm and 12.10mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 9.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Metric | 195.00 mm |
|---|---|
| Small End Diameter | 8.90 mm |
| Material | High Speed Steel |
| Overall Length Decimal | 7.6772" |
| Brand | Dormer |
| Cutting Direction | Right |
| Taper Pin Size | 1.00 mm |
| Coating/Finish | Bright |
| Number of Flutes | 6 |
| Shank Style | Cylindrical shank with Square |
