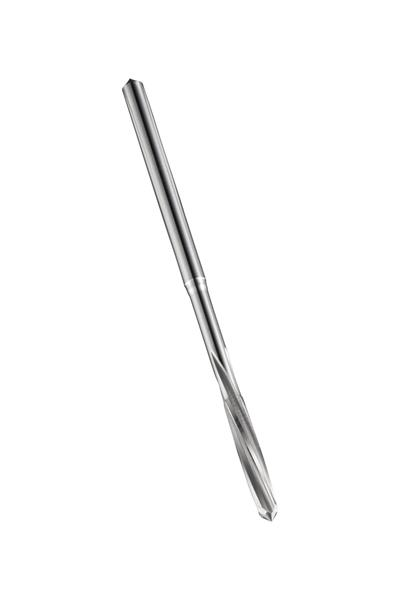

18.00 mm Carbide Bright Finish RH Straight Shank Cylindrical Machine Chucking Reamer
- Item Code: 5987097
- Brand: Dormer
- Unit Size: 1
Description
Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 18.00mm with an overall length of 182mm, a flute length of 56mm and 137mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Metric Diameter | 18.00 mm |
|---|---|
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Overall Length Metric | 182.00 mm |
| Coating/Finish | Bright |
| Material | Solid Carbide |
| Cutting Direction | Right |
| Number of Flutes | 6 |
| Overall Length Decimal | 7.1654" |
| Decimal Diameter | 0.7087" |
