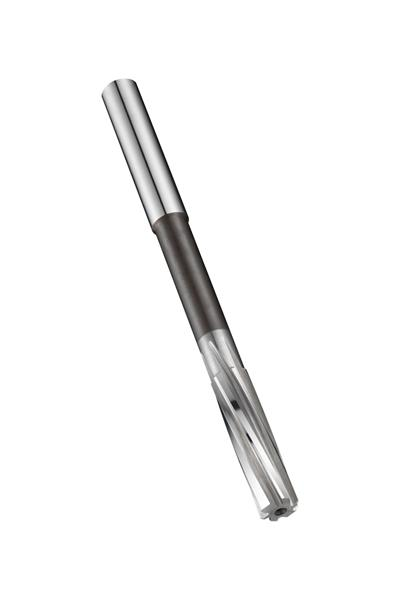

2.20 mm Carbide Bright Finish RH Straight Shank Cylindrical Machine Chucking Reamer
- Item Code: 5987103
- Brand: Dormer
- Unit Size: 1
Description
Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 2.20mm with an overall length of 53mm, a flute length of 12mm and 25mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Metric | 53.00 mm |
|---|---|
| Decimal Diameter | 0.0866" |
| Shank Style | Cylindrical shank |
| Cutting Direction | Right |
| Brand | Dormer |
| Overall Length Decimal | 2.0866" |
| Coating/Finish | Bright |
| Material | Solid Carbide |
| Metric Diameter | 2.20 mm |
| Number of Flutes | 4 |
