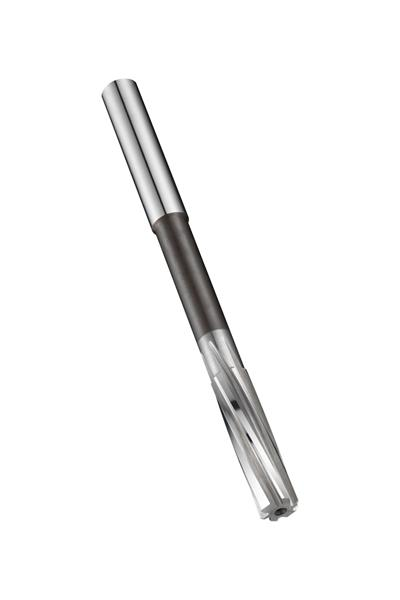

1.40 mm Carbide Bright Finish RH Straight Shank Cylindrical Machine Chucking Reamer
- Item Code: 5987163
- Brand: Dormer
- Unit Size: 1
Description
Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 1.40mm with an overall length of 40mm, a flute length of 8mm and 18mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Decimal Diameter | 0.0551" |
|---|---|
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Overall Length Metric | 40.00 mm |
| Metric Diameter | 1.40 mm |
| Brand | Dormer |
| Overall Length Decimal | 1.5748" |
| Coating/Finish | Bright |
| Shank Style | Cylindrical shank |
