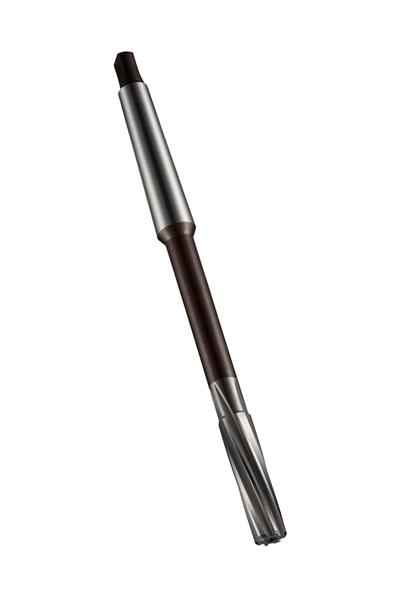

14.00 mm Carbide Bright Finish RH #1 Morse Taper Shank B+ Flute Cylindrical Machine Chucking Reamer
- Item Code: 5987169
- Brand: Dormer
- Unit Size: 1
Description
Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a Morse taper shank, diameter 14.00mm with an overall length of 189mm, a flute length of 47mm and 123.5mm reach with neck relief, according to DIN 8094 standard for reaming precise holes within H7 tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Metric | 189.00 mm |
|---|---|
| Coating/Finish | Bright |
| Material | Solid Carbide |
| Cutting Direction | Right |
| Decimal Diameter | 0.5512" |
| Overall Length Decimal | 7.4409" |
| Number of Flutes | 8 |
| Brand | Dormer |
| Metric Diameter | 14.00 mm |
| Shank Style | Morse Taper Shank |
