20.00 mm Carbide Bright Finish RH #1 Morse Taper Shank B+ Flute Cylindrical Machine Chucking Reamer
- Item Code: 5987187
- Brand: Dormer
- Unit Size: 1
Description

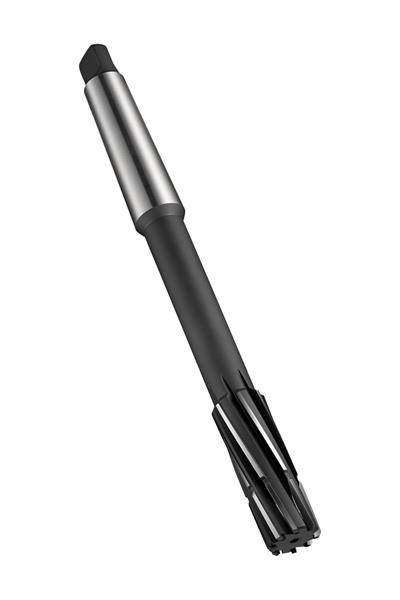

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a Morse taper shank, diameter 20.00mm with an overall length of 228mm, a flute length of 60mm and 148mm reach with neck relief, according to DIN 8094 standard for reaming precise holes within H7 tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Decimal Diameter | 0.7874" |
| Shank Style | Morse Taper Shank |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 6 |
| Overall Length Metric | 228.00 mm |
| Material | Solid Carbide |
| Metric Diameter | 20.00 mm |
| Overall Length Decimal | 8.9764" |
