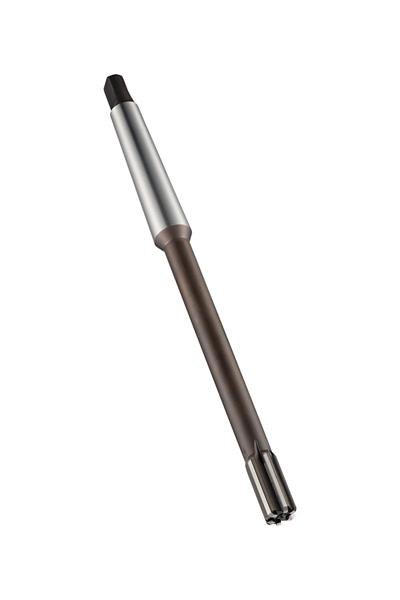

16.00 mm Carbide Bright Finish RH #1 Morse Taper Shank A Flute Cylindrical Machine Chucking Reamer
- Item Code: 5987216
- Brand: Dormer
- Unit Size: 1
Description
Machine reamer with straight flutes which are extremely unequally spaced and a Morse taper shank, diameter 16.00mm with an overall length of 210mm, a flute length of 22mm and 130mm reach with neck relief, according to DIN 8051 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Material | Solid Carbide |
| Overall Length Decimal | 8.2677" |
| Cutting Direction | Right |
| Number of Flutes | 6 |
| Overall Length Metric | 210.00 mm |
| Decimal Diameter | 0.6299" |
| Metric Diameter | 16.00 mm |
| Brand | Dormer |
| Shank Style | Morse Taper Shank |
