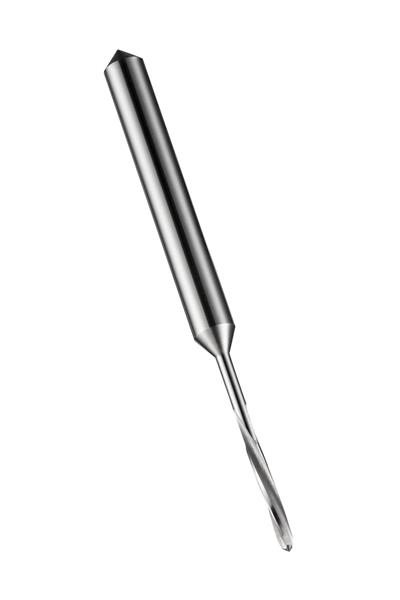

0.98 mm Carbide Bright Finish B+ Flute Centesimal Cylindrical NC Chucking Reamer
- Item Code: 5987462
- Brand: Dormer
- Unit Size: 1
Description
Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 0.98mm with an overall length of 49.5mm, a flute length of 6mm and 21.5mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 1N10, 1N11 or 1S7, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Overall Length Metric | 50.00 mm |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Coating/Finish | Bright |
| Metric Diameter | 0.98 mm |
| Overall Length Decimal | 1.9685" |
| Brand | Dormer |
| Decimal Diameter | 0.0386" |
