1.51 mm Carbide Bright Finish B+ Flute Centesimal Cylindrical NC Chucking Reamer
- Item Code: 5987497
- Brand: Dormer
- Unit Size: 1
Description

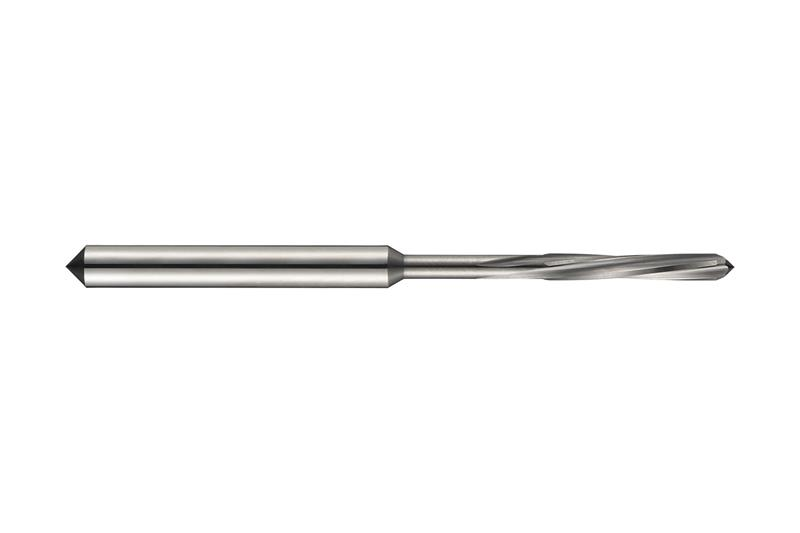

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 1.51mm with an overall length of 49mm, a flute length of 9mm and 21mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 1.5F7, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Number of Flutes | 3 |
| Overall Length Decimal | 1.9685" |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Overall Length Metric | 50.00 mm |
| Brand | Dormer |
| Metric Diameter | 1.51 mm |
| Material | Solid Carbide |
| Coating/Finish | Bright |
| Decimal Diameter | 0.0594" |
