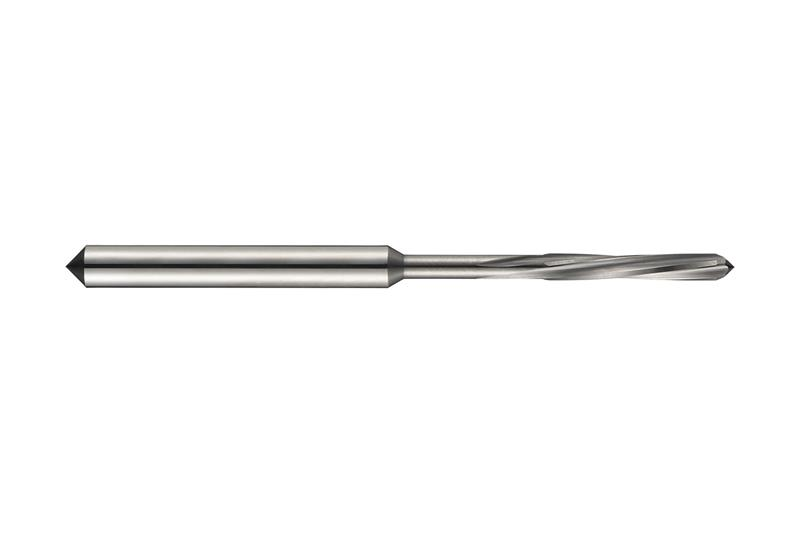

2.03 mm Carbide Bright Finish B+ Flute Centesimal Cylindrical NC Chucking Reamer
- Item Code: 5987507
- Brand: Dormer
- Unit Size: 1
Description
Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 2.03mm with an overall length of 49mm, a flute length of 12mm and 21mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 2E9 or 2H10, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Metric Diameter | 2.03 mm |
|---|---|
| Overall Length Decimal | 1.9685" |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Brand | Dormer |
| Decimal Diameter | 0.0799" |
| Overall Length Metric | 50.00 mm |
| Cutting Direction | Right |
| Coating/Finish | Bright |
| Material | Solid Carbide |
| Number of Flutes | 4 |
