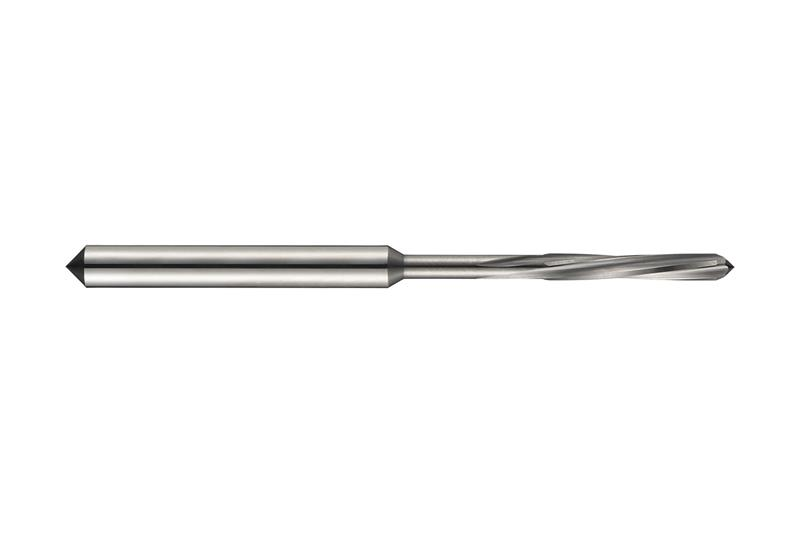

10.02 mm Carbide Bright Finish B+ Flute Centesimal Cylindrical NC Chucking Reamer
- Item Code: 5987517
- Brand: Dormer
- Unit Size: 1
Description
Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 10.02mm with an overall length of 133mm, a flute length of 38mm and 93mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 10F7 or 10H9, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Decimal Diameter | 0.3945" |
|---|---|
| Metric Diameter | 10.02 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 6 |
| Overall Length Decimal | 5.2362" |
| Overall Length Metric | 133.00 mm |
| Material | Solid Carbide |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Brand | Dormer |
