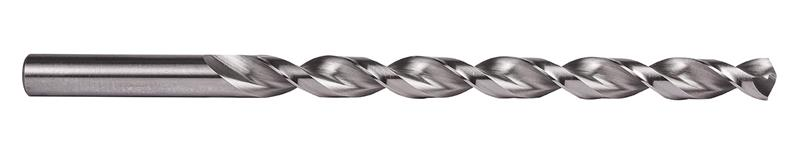

11/64 in. x 12 in. OAL HSS Bright Finish RH 135 Deg.Deg. Parabolic Flute Taper Length Drill
- Item Code: 5996504
- Brand: Precision Twist Drill
- Unit Size: 1
Description
QC1290P extra length drills are all manufactured with a 12 inch overall length for extra reach. They also have a specially designed parabolic flute which makes it possible to drill deeper holes in a single pass ? no pecking. Manufactured from premium High Speed Steel, the drills are suitable for drilling a wide range of materials including steels, stainless steel and aluminum, and the bright finish prevents workpiece material from sticking to the cutting edges of the tool for a cleaner, more accurate hole. For help with self centering, the tools have a 135 degree split point, which also reduces the force needed to drill into the workpiece. QC1290P extra length drills come in a range of metric diameters from 1/8 inch to 1/2 inch in 1/64 inch increments.
Tech Specs
Back To Top| Overall Length Fractional | 12" |
|---|---|
| Cutting Direction | Right |
| Material | High Speed Steel |
| Point Angle | 135 Deg. |
| Coating/Finish | Bright |
| Decimal Size | 0.1719" |
| Fractional Size | 11/64" |
| Brand | Precision Twist Drill |
| Metric Size | 4.37 mm |
| Overall Length Metric | 304.80 mm |
| Overall Length Decimal | 12.0000" |
| Shank Style | Cylindrical shank |
