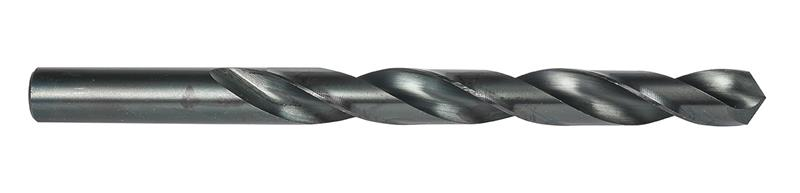

17/64 in. HSS Steam Tempered RH 118 Deg.Point Jobber Length Drill
- Item Code: 5997506
- Brand: Precision Twist Drill
- Unit Size: 1
Description
R10A jobber drills have a 118 degree split point which helps with self-centering and reduces the force needed to drill into the workpiece. Manufactured from premium High Speed steel, the tools are suitable for drilling a wide range of materials including aluminum, steel and stainless steel, and have a steam oxide finish to prevent workpiece material from sticking to the cutting surface so you get a clean and accurate hole. R10A split point jobber drills can be used in many different machine and hand held applications and are available in fractional sizes from 1/16 inch to 1/2 inch
ORDER IN MULTIPLES of 12
Tech Specs
Back To Top| Fractional Size | 1/4" |
|---|---|
| Overall Length Metric | 101.6 mm |
| Cutting Direction | Right |
| Material | High Speed Steel |
| Coating/Finish | Steam Oxide |
| Decimal Size | 0.2500" |
| Overall Length Inches | 4" |
| Shank Style | Cylindrical shank |
| Brand | Precision Twist Drill |
| Metric Size | 6.35 mm |
| Point Angle | 118 Deg. |
