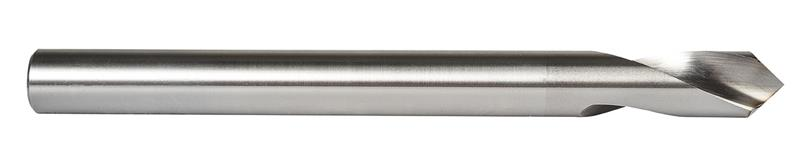

3/8 in. HSS TiN Finish 90 Deg. RH Taper Length Spotting Drill
- Item Code: 6000068
- Brand: Precision Twist Drill
- Unit Size: 1
Description
SPLG-90 spotting drills have a 90 degree conventional point, designed for spotting holes including 90 degree chamfer, with a point angle providing an accurate chamfer to accommodate standard screws. Where increased reach is needed, the long length improves centering and accuracy and the drills can be used when drilling most common materials, including cast iron, stainless steel, steel and aluminum making these spotting drills a versatile choice. To round things off, SPLG-90 spotting drills come with a titanium nitride coating which both increases the service life of the tool and improves performance when drilling harder materials.
Tech Specs
Back To Top| Overall Length Inches | 7.0000" |
|---|---|
| Decimal Size | 0.3750" |
| Cutting Direction | Right |
| Fractional Size | 3/8" |
| Overall Length Metric | 177.8 mm |
| Point Angle | 90 Deg. |
| Metric Size | 9.53 mm |
| Overall Length Fractional | 7" |
| Shank Style | Cylindrical shank |
| Brand | Precision Twist Drill |
| Coating/Finish | TiN |
| Material | High Speed Steel |
