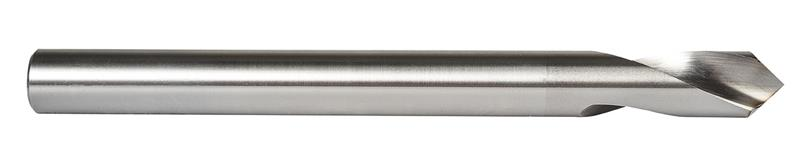

1 in. HSS Bright Finish RH 120 Deg. Jobber Length Spotting Drill
- Item Code: 6000076
- Brand: Precision Twist Drill
- Unit Size: 1
Description
For drilling most common materials including steel, aluminum, cast iron and stainless steel, SPR-120 spotting drills have a 120 degree conventional point, designed for spotting holes including 120 degree chamfer, and an accurate point producing a chamfer to accommodate standard screws. The bright finish further ensures accurate results by preventing workpiece material from sticking to the cutting edges of the tool and the regular length improves accuracy and centering where increased reach is required.
Tech Specs
Back To Top| Brand | Precision Twist Drill |
|---|---|
| Metric Size | 25.40 mm |
| Shank Style | Cylindrical shank |
| Point Angle | 120 Deg. |
| Coating/Finish | Bright |
| Overall Length Fractional | 8" |
| Overall Length Inches | 8.0000" |
| Fractional Size | 1" |
| Material | High Speed Steel |
| Overall Length Metric | 203.2 mm |
| Cutting Direction | Right |
| Decimal Size | 1.0000" |
