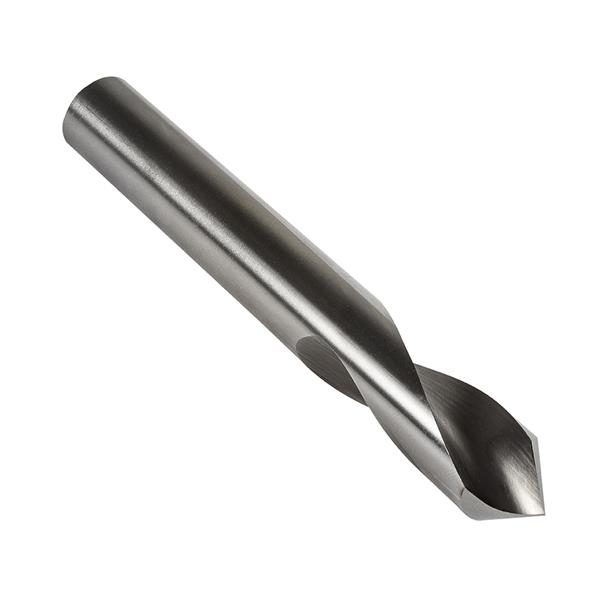

3/8 in. HSS Bright Finish RH 120 Deg. Short Length Spotting Drill
- Item Code: 6000078
- Brand: Precision Twist Drill
- Unit Size: 1
Description
The short, rigid design of the SPS-120 High Speed Steel spotting drill improves rigidity and accuracy. The accurate 120 degree conventional point for spotting holes, including a 120 degree chamfer, produces accurate chamfers to take standard screws. With a bright finish for further accuracy to prevent workpiece material from sticking to the cutting edges of the tool, SPS-120 spotting drills can be used for drilling most materials, including stainless steel, cast iron, aluminum and steel.
Tech Specs
Back To Top| Overall Length Inches | 3.125" |
|---|---|
| Overall Length Metric | 79.38 mm |
| Overall Length Fractional | 3-1/8" |
| Point Angle | 120 Deg. |
| Brand | Precision Twist Drill |
| Decimal Size | 0.3750" |
| Material | High Speed Steel |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Fractional Size | 3/8" |
| Metric Size | 9.53 mm |
| Shank Style | Cylindrical shank |
