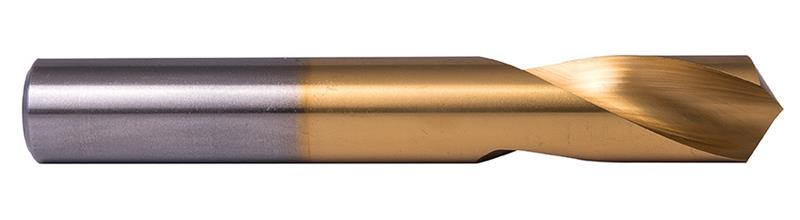

3/4 in. HSS Bright Finish RH 90 Deg. Short Length Spotting Drill
- Item Code: 6000097
- Brand: Precision Twist Drill
- Unit Size: 1
Description
SPS-90 High Speed Steel spotting drills are very versatile and can be used for drilling a great many materials including stainless steel, aluminum, cast iron and steel. The bright finish prevents workpiece material from sticking to the cutting edges of the drill to ensure clean and accurate holes, whilst the short rigid design improves centering and accuracy. The tools have a 90 degree conventional point for spotting holes including a 90 degree chamfer which is very accurate to accommodate standard screws.
Tech Specs
Back To Top| Fractional Size | 3/4" |
|---|---|
| Overall Length Inches | 5.0000" |
| Coating/Finish | Bright |
| Overall Length Fractional | 5" |
| Cutting Direction | Right |
| Material | High Speed Steel |
| Overall Length Metric | 127 mm |
| Decimal Size | 0.7500" |
| Point Angle | 90 Deg. |
| Shank Style | Cylindrical shank |
| Brand | Precision Twist Drill |
| Metric Size | 19.05 mm |
