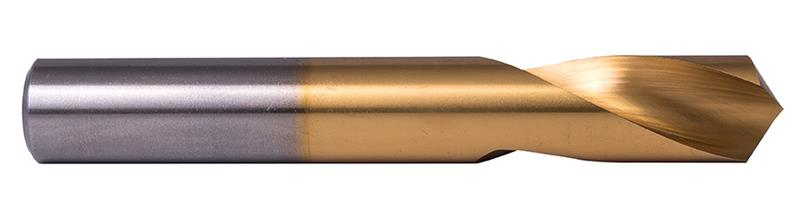

3/4 in. HSS TiN Finish RH 120 Deg. Short Length Spotting Drill
- Item Code: 6000116
- Brand: Precision Twist Drill
- Unit Size: 1
Description
SPSG-120 High Speed Steel spotting drills have a titanium nitride coating which extends the life of the drill and improves performance when drilling harder materials, whilst the short, rigid design improves accuracy and centering. The 120 degree conventional point is designed for spotting holes with an accurate 120 degree chamfer, accommodating standard screws. Suitable for drilling steel, cast iron, aluminum, stainless steel and most other common materials, SPSG-120 spotting drills are a great choice.
Tech Specs
Back To Top| Point Angle | 120 Deg. |
|---|---|
| Fractional Size | 3/4" |
| Cutting Direction | Right |
| Decimal Size | 0.7500" |
| Overall Length Inches | 5.0000" |
| Overall Length Fractional | 5" |
| Shank Style | Cylindrical shank |
| Coating/Finish | TiN |
| Overall Length Metric | 127 mm |
| Material | High Speed Steel |
| Brand | Precision Twist Drill |
| Metric Size | 19.05 mm |
