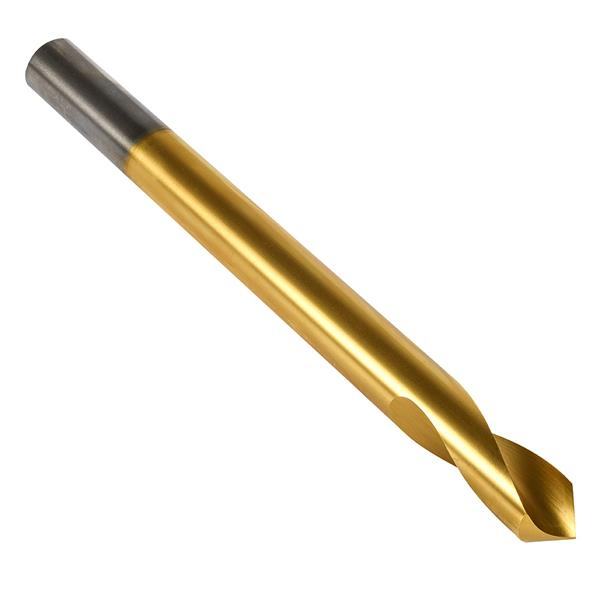

1/2 in. HSS TiN Finish RH 120 Deg. Jobber Length Spotting Drill
- Item Code: 6000122
- Brand: Precision Twist Drill
- Unit Size: 1
Description
SPRG High Speed Steel spotting drills have a titanium nitride coating which extends the life of the tool and improves performance when drilling harder materials. The accurate 120 degree point is designed for spotting holes including a 120 degree chamfer and provides an accurate chamfer to accommodate standard screws. The standard length improves accuracy and centering where increased reach is needed and the drills can be used in most common materials including steel, cast iron, stainless steel and aluminum.
Tech Specs
Back To Top| Decimal Size | 0.5000" |
|---|---|
| Shank Style | Cylindrical shank |
| Brand | Precision Twist Drill |
| Metric Size | 12.70 mm |
| Overall Length Metric | 152.4 mm |
| Fractional Size | 1/2" |
| Point Angle | 120 Deg. |
| Material | High Speed Steel |
| Overall Length Inches | 6.0000" |
| Coating/Finish | TiN |
| Cutting Direction | Right |
| Overall Length Fractional | 6" |
