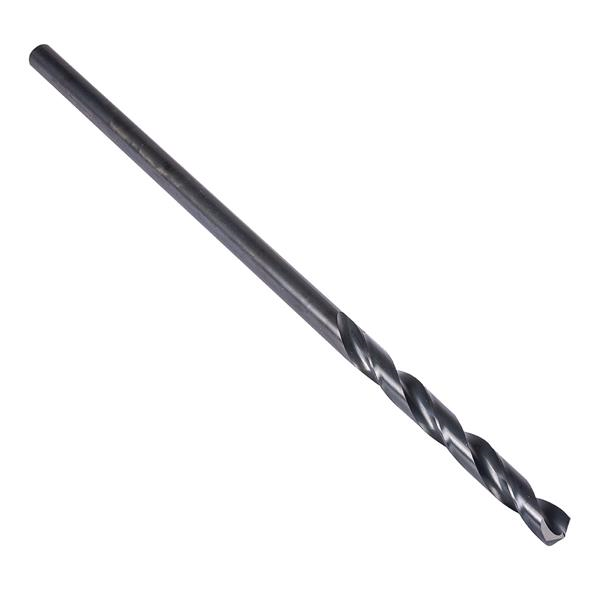

A HSS Black Oxide 12 in. OAL 135 Deg. Split Point Aircraft Extension Drill
- Item Code: 6001352
- Brand: Precision Twist Drill
- Unit Size: 1
Description
502-12 long series aircraft extension drills, to NAS907 type B standard, are manufactured from premium High Speed steel and can be used for drilling many materials including stainless steel, aluminum and steels. They have a steam oxide finish to stop workpiece material from adhering to the cutting surfaces, so you get an accurate, clean finish, and a 135 degree split point which reduces the push force needed and aids self-centering. For stable drilling in areas which are difficult to reach, 502-12 aircraft extension drill bits have a long overall length with a short flute length. They are available in letter sizes from A to Z.
Tech Specs
Back To Top| Coating/Finish | Black Oxide |
|---|---|
| Shank Style | Cylindrical shank |
| Brand | Precision Twist Drill |
| Decimal Equivalent | 0.2340" |
| Cutting Direction | Right |
| Metric Size | 5.94 mm |
| Overall Length | 12" |
| Point Angle | 135 Deg. |
| Material | High Speed Steel |
