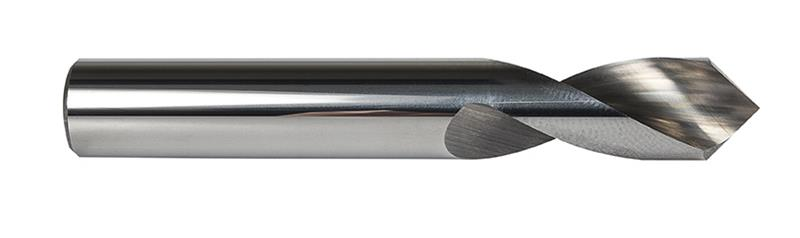

1/8 in. HSS Bright Finish RH 90 Deg. Spotting Drill
- Item Code: 6002225
- Brand: Precision Twist Drill
- Unit Size: 1
Description
DS-90 spotting drills have a precise point angle for accurate chamfering to take standard screws. The premium carbide used in manufacture means the tools are suitable for drilling many materials, including steels, stainless steel and aluminum, whilst the 90 degree point reduces the push force required and helps with self-centering. The bright finish prevents workpiece material from sticking to the cutting surfaces of the tool so you can be sure of a clean, accurate result. DS-90 solid carbide spotting drills are available in six different fractional sizes from 1/8? to 1/2" to satisfy most spotting requirements.
Tech Specs
Back To Top| Brand | Precision Twist Drill |
|---|---|
| Metric Size | 3.18 mm |
| Overall Length Metric | 50.8 mm |
| Point Angle | 90 Deg. |
| Fractional Size | 1/8" |
| Overall Length Fractional | 2" |
| Overall Length Inches | 2.0000" |
| Shank Style | Cylindrical shank |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Decimal Size | 0.1250" |
| Material | Solid Carbide |
