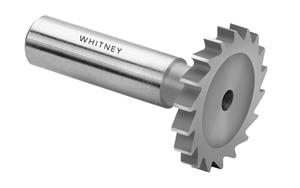

1 in. x 11/64 in. Style 110 M42 Cobalt Narrow Width Slotting Cutter - Uncoated/Straight Tooth
- Item Code: 610011M42
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Woodruff Style Narrow Width Slotting Cutters Style 110 M42 Cobalt
Straight Tooth Configuration
Made in USA
Features
Back To Top- M42 Cobalt
- Right Hand Cut
- 1?2" Dia. Straight Shank
- 2" Underhead Length
Tech Specs
Back To Top| UPC | 648672202058 |
|---|---|
| Neck Diameter | 0.279 |
| Width Tolerance | +0", -0.0005" |
| Shank Diameter | 1/2" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Tooth Configuration | Straight |
| Coating/Finish | None |
| OD Tolerance | +0.012", +0.017" |
| Overall Length (Inch) | 2-11/64" |
| Fractional Diameter | 1" |
| Number of Teeth | 16 |
| Brand | Whitney Tool |
| Material | Cobalt |
| Shank Type | Straight |
| Style | Style 110 |
| Cut Width | 11/64" |
| Metric Diameter | 25.40 mm |
| Shank Length | 2 |
