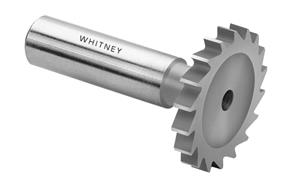

1-3/8 in. x 5/32 in. Style 110 M42 Cobalt Narrow Width Slotting Cutter - Uncoated/Straight Tooth
- Item Code: 613710M42
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Woodruff Style Narrow Width Slotting Cutters Style 110 M42 Cobalt
Straight Tooth Configuration
Made in USA
Features
Back To Top- M42 Cobalt
- Right Hand Cut
- 1?2" Dia. Straight Shank
- 2" Underhead Length
Tech Specs
Back To Top| UPC | 648672202300 |
|---|---|
| Width Tolerance | +0", -0.0005" |
| Fractional Diameter | 1-3/8" |
| Overall Length (Inch) | 2-5/32" |
| Shank Diameter | 1/2" |
| Tooth Configuration | Straight |
| Coating/Finish | None |
| Cut Width | 5/32" |
| Number of Teeth | 18 |
| Brand | Whitney Tool |
| Metric Diameter | 34.93 mm |
| OD Tolerance | +0.015", +0.020" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Material | Cobalt |
| Neck Diameter | 0.401 |
| Shank Type | Straight |
| Style | Style 110 |
| Shank Length | 2 |
