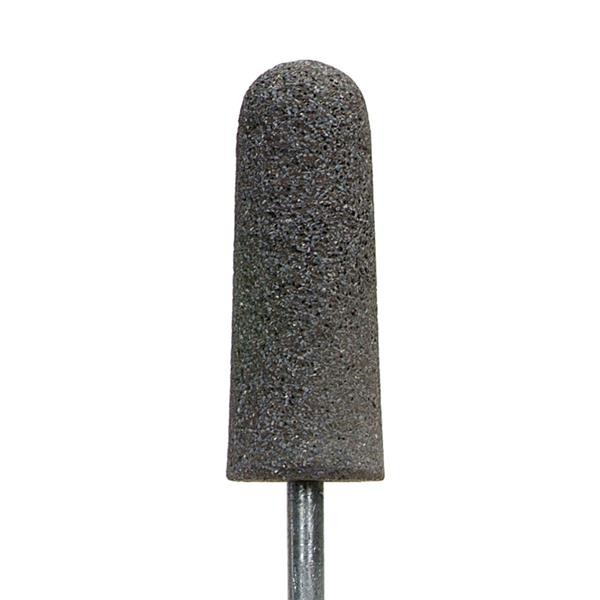

1 x 2-3/4 x 1/4 Inch Charger Mounted Point A3 30 Grit CHARGER 30 GRIT

  • Item Code: 61463616460
  • Brand: Norton
  • Unit Size: 1

Description

A mounted wheel is a small grinding wheel permanently fastened to its own spindle. They are used is a multitude of operations in almost every industry and on a variety of machines. Extensively used in tool and die shops, aerospace and foundries for removing parting lines, deburring, and finishing. Mounted wheels come in an extensive numbers of shapes, grit sizes and bond types to satisfy all of these applications.

Features Tech Specs

Features

Back To Top
    • Better choice for fast stock removal and long life
    • Zirconia alumina / aluminum oxide abrasive blend for 35% faster cut rate than standard aluminum oxide, an aggressive, free cut, more parts cleaned in less time to substantially increase productivity
    • Specially formulated organic bond for 2X greater life than ordinary aluminum oxide, reduces vibration and wheel chatter
    • Ideal for removing parting lines, fins and small risers from castings, and smoothing and blending of welded areas
    • Standard shank length is 1-1/2
    • Maximum operating speed is based on 1/2 in overhang

Tech Specs

Back To Top
Material Zirconia Alumina
Series Charger
Diameter(in) 1 In.
Wheel Type Type 52
Max Operating Speed 15530.000000
Specification CHARGER 30 GRIT
Bit Length 2-3/4 In.
Color Brown
Brand Norton
Shank Diameter 1/4 In.
Attachment Type One Piece (Mandrel & Blade)
Grit 30
Shank Length 1 1/2 in
Shape A3
