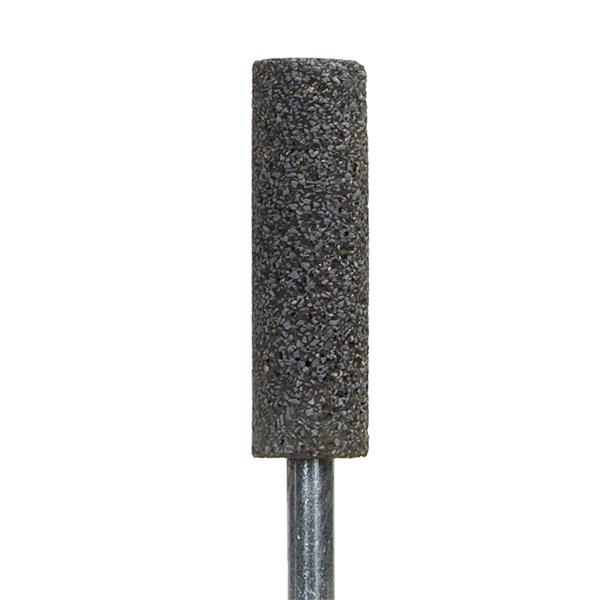

5/8 x 2 x 1/4 Inch NorZon Mounted Point W197 24 Grit NZ242-UBXR1

  • Item Code: 61463616467
  • Brand: Norton
  • Unit Size: 1

Description

A mounted wheel is a small grinding wheel permanently fastened to its own spindle. They are used is a multitude of operations in almost every industry and on a variety of machines. Extensively used in tool and die shops, aerospace and foundries for removing parting lines, deburring, and finishing. Mounted wheels come in an extensive numbers of shapes, grit sizes and bond types to satisfy all of these applications.

Features Tech Specs

Features

Back To Top
    • Best choice for fast stock removal and long life
    • Zirconia alumina abrasive blend for 2X faster cut rate than standard aluminum oxide, an aggressive, free cut, more parts cleaned in less time to substantially increase productivity
    • Specially formulated organic bond for 4X greater life than ordinary aluminum oxide, reduces vibration and wheel chatter
    • Ideal for removing parting lines, fins and small risers from castings, and smoothing and blending of welded areas
    • Standard shank length is 1-1/2
    • Maximum operating speed is based on 1/2 in overhang

Tech Specs

Back To Top
Diameter(in) 5/8 In.
Max Operating Speed 24550.000000
Brand Norton
Wheel Type Type 52
Color Brown
Shape W197
Material Zirconia Alumina
Series NorZon
Shank Diameter 1/4 In.
Grit 24
Specification NZ242-UBXR1
Attachment Type One Piece (Mandrel & Blade)
Shank Length 1 1/2 in
Bit Length 2 In.
