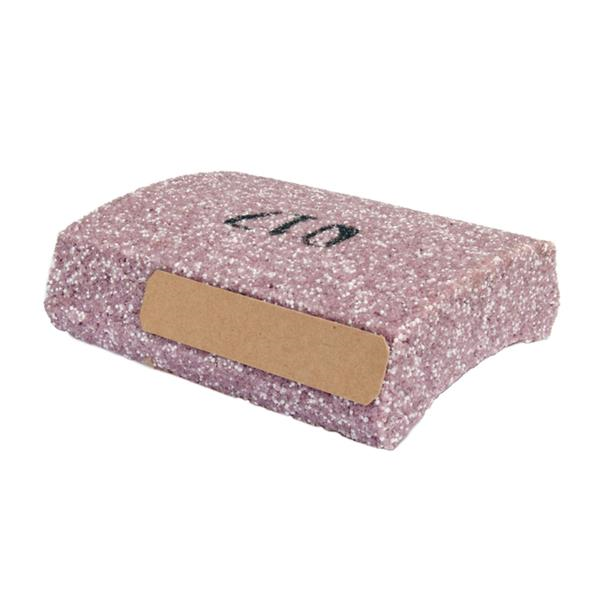

5 x 1-1/2 x 6 Inch 86A Surface Grinding Segment 86A30-F12VBEP

  • Item Code: 61463650273
  • Brand: Norton
  • Unit Size: 1

Description

Surface grinding segments are generally used to grind flat stock or flat surfaces within a workpiece. The segment moves over the workpiece in a flat plane or vice versa. Applications can vary from heavy, rapid stock removal to precision tolerance operations.

Features Tech Specs

Features

Back To Top
    • Sharp aluminum oxide abrasive for versatile, consistent performance
    • The porous VBEP vitrified bond increases chip clearance and maximizes coolant flow, reduces loading and is cool cutting in heat-sensitive applications
    • For use in Hanchett, Mattison, and Norton chucks on surface grinding machines
    • This porous bond increases chip clearance and maximizes coolant flow, reduces loading and is cool cutting in heat-sensitive applications
    • Good choice when a broad variety of parts are ground on one machine

Tech Specs

Back To Top
Width(in) 5.000000
Thickness(in) 1.500000
Wheel Type Type 31
Color Pink
Grit 30
Length(in) 6.000000
Width 5 In.
Series 86A
Thickness 1-1/2 In.
Length 6 In.
Brand Norton
Specification 86A30-F12VBEP
Material Aluminum Oxide
