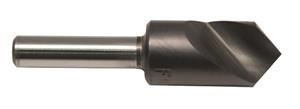

1/8 Inch High Speed Steel ALtima® Blaze Coated 90° Included Angle Uniflute® Countersink
- Item Code: 61B012503
- Brand: MA Ford
- Unit Size: 1
Description
Uniflute® - Series 61B
This is the original single flute countersink designed for general purpose countersinking, chamfering or deburring.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
ALtima® Blaze--Aluminum Chromium Nitride (AlCrN). ALtima® Blaze is designed to allow higher material removal rates. This coating has a higher oxidation temperature than a typical TiAlN coating. It has shown very good results in nickel alloys, titanium, and other difficult to machine materials. Tools coated with ALtima® Blaze can be used in dry machining.
Features
Back To Top- Self piloting and completely chatterless.
- No secondary burs formed.
- Each size may be used on a wide range of hole diameters.
- Use on machine tool or in handheld tool applications.
- Easily resharpened.
- ALtima® Blaze for extreme wear resistance under all machining conditions.
Tech Specs
Back To Top| Overall Length | 1-1/2 |
|---|---|
| Angle | 90 Deg |
| Brand | MA Ford |
| Shank Diameter | 1/8 |
| Type | Countersink |
| Diameter Maximum | 0.03 |
| Material | High Speed Steel |
| Number of Flutes | 1 |
| Decimal Diameter | 0.1250" |
| Fractional Diameter | 1/8" |
| Coating/Finish | Altima Blaze |
| Series | Uniflute® |
