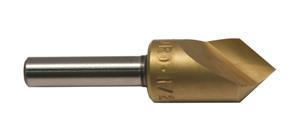

1/2 Inch High Speed Steel TiN Coated 82° Included Angle Uniflute® Countersink

  • Item Code: 61T050002
  • Brand: MA Ford
  • Unit Size: 1

Description

Uniflute® - Series 61T

This is the original single flute countersink designed for general purpose countersinking, chamfering or deburring.

High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.

Titanium Nitride (TiN). TiN coating has shown good results in low carbon steels and many iron-based applications. It is a very popular coating used in the industry today.

Features Tech Specs

Features

Back To Top
    • Self piloting and completely chatterless.
    • No secondary burs formed.
    • Each size may be used on a wide range of hole diameters.
    • Use on machine tool or in handheld tool applications.
    • Easily resharpened.
    • TiN coating for higher surface hardness and increased lubricity.

Tech Specs

Back To Top
Angle 82 Deg
Diameter Maximum 0.06
Number of Flutes 1
Shank Diameter 1/4
Type Countersink
Brand MA Ford
Coating/Finish TiN
Overall Length 2
Series Uniflute®
Material High Speed Steel
Decimal Diameter 0.5000"
Fractional Diameter 1/2"
