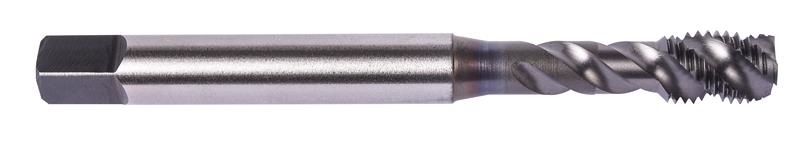

M4 x 0.70 Coarse Carbide (HSS-E) TiCN Coated RH 6H Semi-Bottoming Chamfer 3 Flute MXL Applix Fast High Performance Spiral Flute Tap
- Item Code: 6204927
- Brand: Dormer
- Unit Size: 1
Description
With a titanium carbo nitride coating for improved performance when threading hard and abrasive materials, 1667AP APPLIX machine taps are part of the Union Butterfield (UB) range of taps and suitable for performance threading a wide range of materials and in sizes to create metric coarse and metric fine threads. Conforming to both DIN and ANSI standards, 1677AP taps have a spiral flute for threading blind holes and are made from premium powder metal High Speed Steel, giving you extended tool life and great performance.
Tech Specs
Back To Top| Helix Angle | 50 Deg. |
|---|---|
| Coating/Finish | TiCN |
| Overall Length Metric | 63 mm |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Shank Style | Cylindrical shank with Square |
| Material | HSS Powdered Metal |
| Overall Length Inches | 2.4803 |
| Brand | Dormer |
