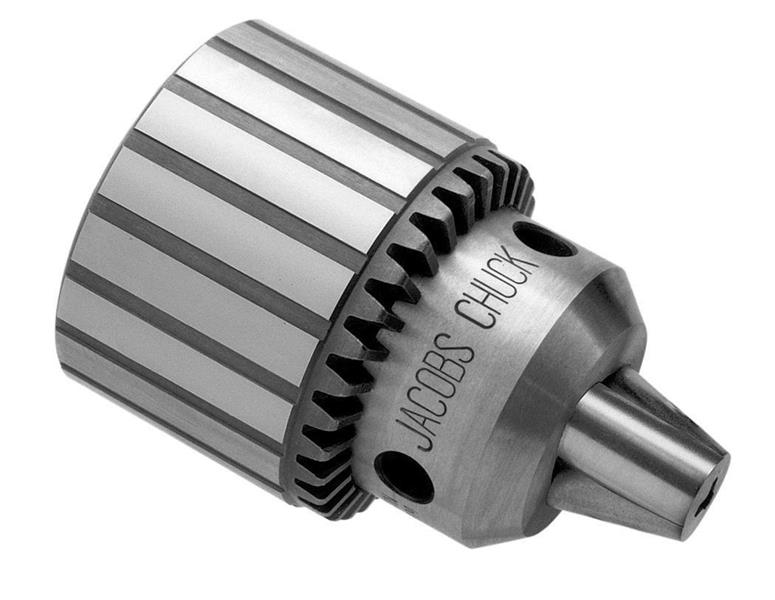

0.18 Inch - 0.800 Inch Capacity, 3JT Mount, HD Plain Bearing Drill Chuck
- Item Code: 6309D
- Brand: Jacobs
- Unit Size: 1
Description
36-3 Plain Bearing Heavy Duty 3/4" Chuck
Features
Back To Top- Jaws Center-Ground for Absolute Straightness and Alignment.
- One-Piece Sleeve Eliminates Crack Between Driving Teeth Often Found in Other Designs.
- Through-Hardened Sleeve Teeth, Plus Hardened Nose and Keyholes Provide Outstanding Wear Resistance.
- Each Chuck 100% Inspected for Performance and Precision.
- T.I.R. .004�� Maximum at Half Capacity.
- Kd Models Have Keyed Drive Feature
- Pd Models Have Pin Drive Feature
- 34-33C Has Smooth Sleeve with Locking Collar.
Tech Specs
Back To Top| Long Description | 36-3 Plain Bearing Heavy Duty 3/4" Chuck |
|---|---|
| Minimum Capacity | 0.18 in |
| Model Number | 36 |
| Open Length | 3.14 in |
| UPC | 095456063099 |
| Weight (Catalog) | 3.02 lb |
| Mount | 3JT |
| Maximum Capacity | 0.800 in |
| Sleeve Outer Diameter | 2.54 in |
| Key Number | K4 |
| Closed Length | 4.06 in |
| Country of Origin | China |
| Application | Machine Tool |
| Brand | Jacobs |
| Packaging | Boxed |
| Type | Chucks |
