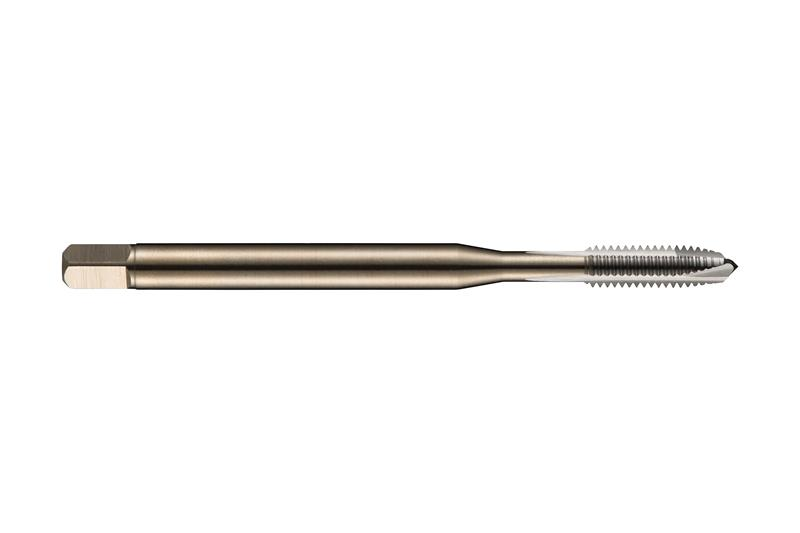

4 mm x 0.70 mm Coarse Carbide (HSS-E) Bright Finish RH 6G 3 Flute Plug Spiral Point Machine Tap
- Item Code: 6479121
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6G class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium
Tech Specs
Back To Top| Overall Length Inches | 2.4803 |
|---|---|
| Overall Length Metric | 63 mm |
| Brand | Dormer |
| Coating/Finish | Bright |
| Shank Style | Cylindrical shank with Square |
| Material | HSS Cobalt Powdered Metal |
| Cutting Direction | Right |
| Number of Flutes | 3 |
