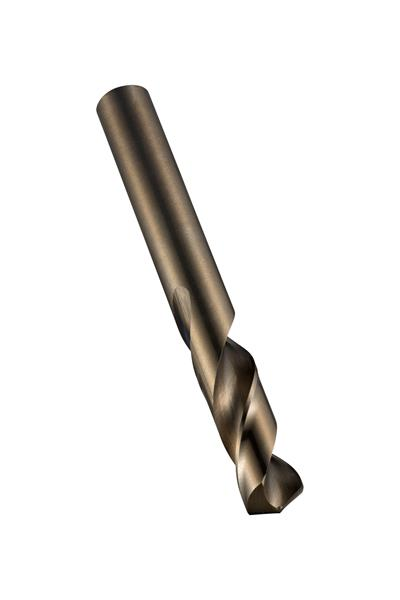

10.00 mm Cobalt (HSS-E) Bronze Finish RH 130 Deg. Stub Length Drill
- Item Code: 6499949
- Brand: Dormer
- Unit Size: 1
Description
The A620 short drill is available in a range of metric sizes. It has a 130 degree point angle which helps keep the drill centered on the hole and reduces the amount of downward force needed to cut the workpiece. The bronze finish stops workpiece material from sticking to the cutting edge of the tool. The A620 is manufactured from premium High Speed cobalt and can be used to machine a wide variety of materials, being particularly suited to drilling stainless steels.
ORDER IN MULTIPLES of 10
Tech Specs
Back To Top| Material | Cobalt |
|---|---|
| Overall Length Metric | 89 mm |
| Metric Diameter | 10.00 mm |
| Overall Length Inches | 3.5039" |
| Point Angle | 130 Deg. |
| Coating/Finish | Bronze |
| Cutting Direction | Right |
| Decimal Diameter | 0.3937" |
| Flute Type | Standard Spiral |
| Brand | Dormer |
| Shank Style | Cylindrical shank |
