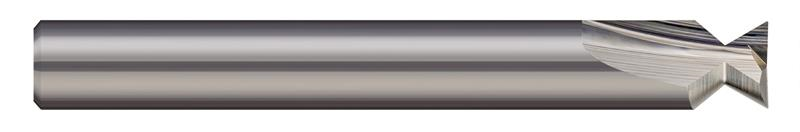

0.5000 in. (1/2) Cutter Diameter x 0.0050 in. Radius x 60 Deg. Included 3 Flute Carbide Tip Radius Dovetail Cutter

  • Item Code: 65132-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter 0.5000" (1/2)
Single/Double End Single End
Weldon Flat N
Angle per Side 30
Coating/Finish None
Included Angle 60
Material Solid Carbide
Overall Length 3.0000" (3)
Brand Harvey Tool
Length of Cut 0.2500" (1/4)
Number of Flutes 3
Decimal Cutting Diameter 0.5000"
Fractional Cutting Diameter 1/2"
Radius Decimal 0.0050"
Neck Diameter 0.2190"
