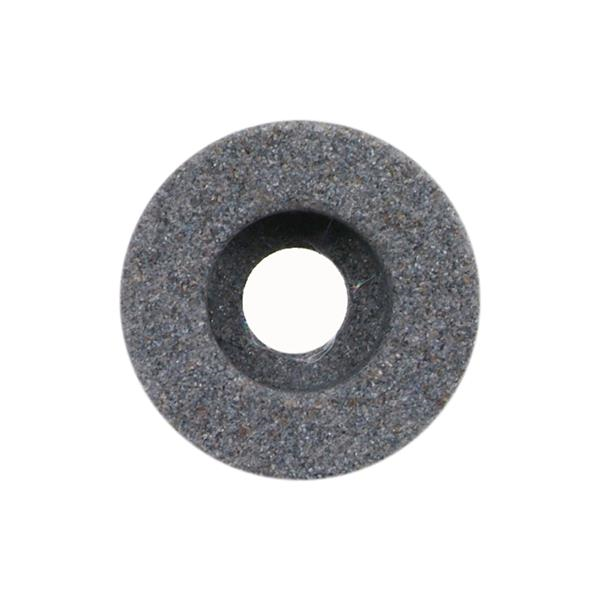

1-1/4 x 1 x 3/8 Inch 32A Toolroom Wheel Type 05 32A60-KVBE
- Item Code: 66243427799
- Brand: Norton
- Unit Size: 1
Description
Norton internal grinding wheels efficiently grind bores and holes, from very rapid stock removal to precise dimensional tolerance applications.
Features
Back To Top- Exceedingly strong, sharp monocrystalline aluminum oxide grain well suited to precision production applications
- The most versatile vitrified bond, especially recommended for toolroom, cylindrical, and surface grinding
- For internal grinding applications; exceptional cool, fast cutting action, requires minimum dressing
- For grinding all kinds of tool steels, including tough vanadium alloy steels, with moderate to heavy feed and stock removal rates
- Outstanding form holding
Tech Specs
Back To Top| Max Operating Speed | 25975 |
|---|---|
| Recess Diameter A | 5/8 In. |
| Brand | Norton |
| Grit | 60 |
| Arbor Hole Size(in) | 3/8 In. |
| Material | Aluminum Oxide |
| Thickness(in) | 1.000000 |
| Diameter(in) | 1-1/4 In. |
| Grade | Medium |
| Series | 32A |
| Specification | 32A60-KVBE |
| Wheel Type | Type 05 |
| Color | Purple |
| Recess Depth A | 1/2 In. |
| Thickness | 1 In. |
