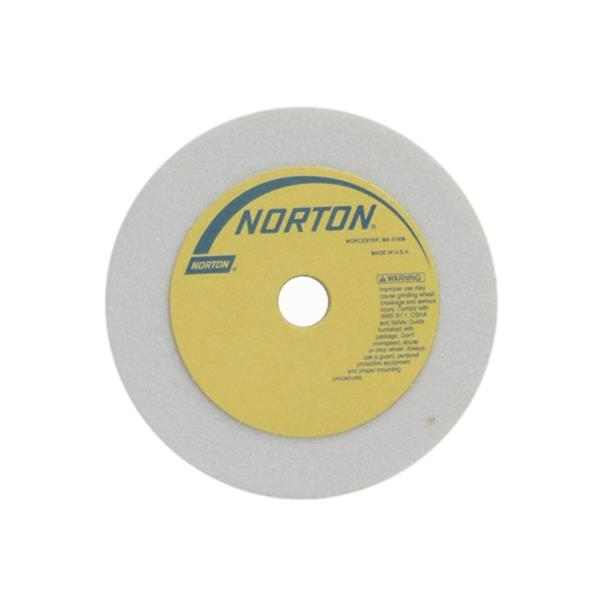

3 x 1 x 1/2 Inch 38A Dressing Wheel Type 01 38A80-MVBE
- Item Code: 66243529146
- Brand: Norton
- Unit Size: 1
Description
Norton dressing wheels are used on brake controlled truing devices to efficiently true and dress diamond and cBN wheels with a minimum of superabrasive loss.
Features
Back To Top- The most friable aluminum oxide abrasive; cool and burn free grinding
- The most versatile vitrified bond, especially recommended for toolroom applications
- Used on brake controlled truing device to dress 150-220 grit resin and vitrified diamond and cBN wheels
- Consistent quality for excellent balance and dimensional accuracy time after time
- Made in ISO-certified facilities in the USA
Tech Specs
Back To Top| Specification | 38A80-MVBE |
|---|---|
| Thickness(in) | 1.000000 |
| Thickness | 1 In. |
| Grade | Fine |
| Series | 38A |
| Wheel Type | Type 01 |
| Grit | 80 |
| Arbor Hole Size(in) | 1/2 In. |
| Material | Aluminum Oxide |
| Max Operating Speed | 10825 |
| Diameter(in) | 3 In. |
| Brand | Norton |
| Color | White |
