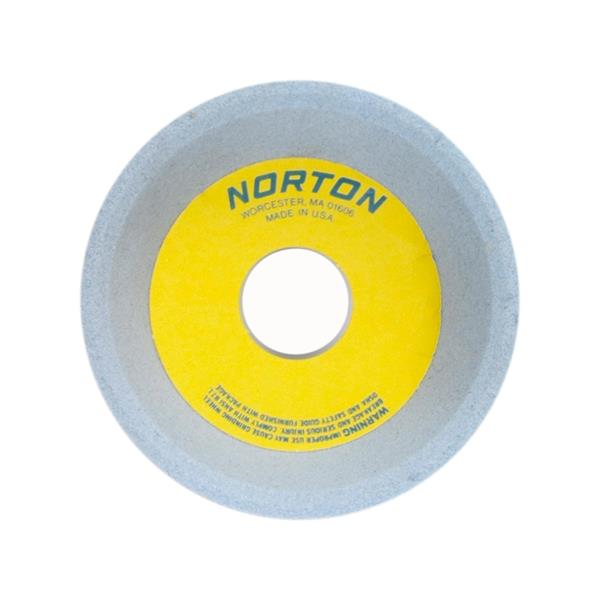

4 x 1-1/2 x 1-1/4 Inch SG Toolroom Wheel Type 11 5SG80-JVS
- Item Code: 66243530419
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- Exceptionally high-performance ceramic alumina and friable aluminum oxide abrasive blend for fast stock removal, cool, superior cutting; 3X - 5X more life than aluminum oxide wheels; double rough stock removal rate vs. conventional abrasives
- High performance bond for versatility (for grinding high sped tool steels, hardened and soft steels, and aerospace alloys) and exceptional form holding
- Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
- Best choice for high productivity, low total per-part grinding cost
- Made in USA in ISO certified facility
- 5SG €“ Durable Norton SG and aluminum oxide blend €“ blue for high stock removal rates, excellent productivity, long wheel life, low overall grinding cost
- NORPOR 3SGR purple Norton SG and 48A abrasive blend with VP2 porous bond for maximum productivity in heat-sensitive, heavy stock removal operations
Tech Specs
Back To Top| Specification | 5SG80-JVS |
|---|---|
| Arbor Hole Size(in) | 1-1/4 In. |
| Color | Blue |
| Diameter(in) | 4 In. |
| Grit | 80 |
| Thickness | 1-1/2 In. |
| Inside Diameter | 2-1/2 In. |
| Thickness(in) | 1.500000 |
| Wheel Type | Type 11 |
| Grade | Fine |
| Diameter2 | 3 In. |
| Max Operating Speed | 5730 |
| Brand | Norton |
| Material | Ceramic Alumina |
| Rim Width | 1/4 In. |
| Thickness-Back | 1/2 In. |
