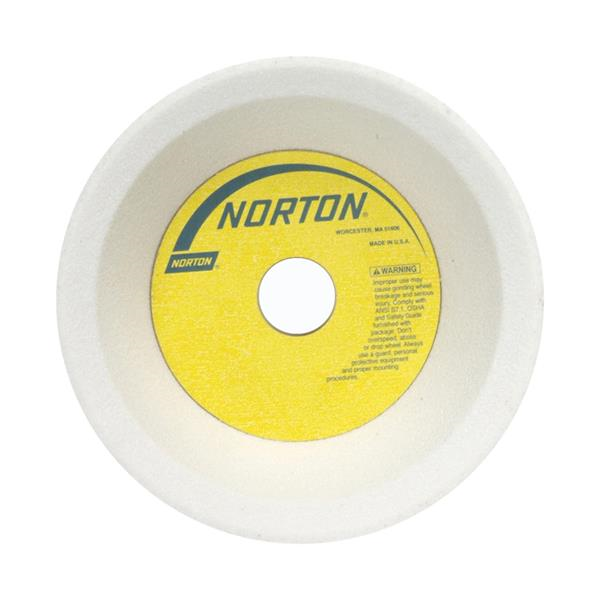

6 x 2 x 1-1/4 Inch 38A Toolroom Wheel Type 11 38A46-KVBE
- Item Code: 66252838495
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- The most friable aluminum oxide abrasive for cool and burn free cutting toolroom applications with light to moderate feed rates
- The most versatile vitrified bond, especially recommended for toolroom, cylindrical, and surface grinding hard and very heat sensitive high speed tool steels; cool fast cutting
- Consistent quality for excellent balance and dimensional accuracy time after time
- Versatile; good choice for light grinding a broad variety of tool steels
- Made in USA in ISO certified facility
Tech Specs
Back To Top| Color | White |
|---|---|
| Grit | 46 |
| Material | Aluminum Oxide |
| Inside Diameter | 4-1/8 In. |
| Thickness-Back | 1/2 In. |
| Grade | Medium |
| Wheel Type | Type 11 |
| Brand | Norton |
| Max Operating Speed | 3820 |
| Thickness | 2 In. |
| Diameter2 | 4-1/2 In. |
| Rim Width | 3/8 In. |
| Series | 38A |
| Specification | 38A46-KVBE |
| Thickness(in) | 2.000000 |
| Arbor Hole Size(in) | 1-1/4 In. |
| Diameter(in) | 6 In. |
