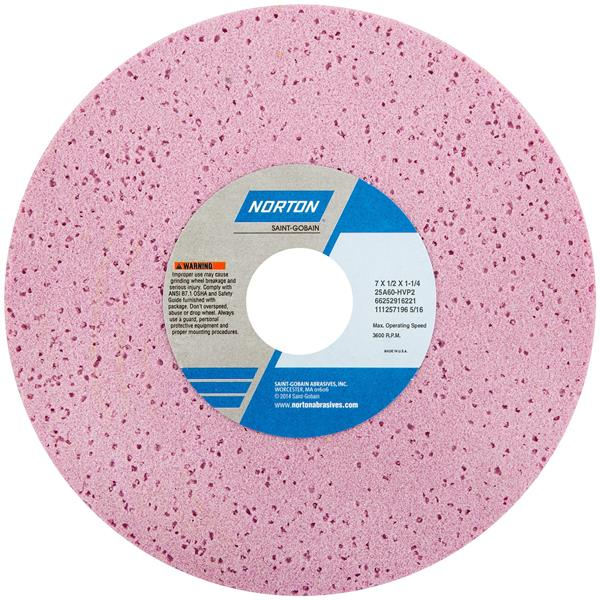

7 x 1/2 x 1-1/4 Inch 25A Toolroom Wheel Type 01 25A46-HVP2
- Item Code: 66252916219
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- Friable (breaks down at a controlled rate; always stays sharp) aluminum oxide abrasive works well on tool steels (hardened, forged, and stainless) and cast iron
- Controlled porosity bond for increased chip clearance and maximum coolant flow; reduced loading; extremely cool cutting wet or dry in heat sensitive applications
- Durable bond post for maximum grain retention and form holding, less dressing; longer wheel life
- Maximum depth of cut for increased grain efficiency; consistent grinding action at high metal removal rates
- Economical general purpose choice
Tech Specs
Back To Top| Series | 25A |
|---|---|
| Brand | Norton |
| Thickness(in) | 0.500000 |
| Wheel Type | Type 01 |
| Material | Aluminum Oxide |
| Max Operating Speed | 3600 |
| Diameter(in) | 7 In. |
| Grit | 46 |
| Specification | 25A46-HVP2 |
| Thickness | 1/2 In. |
| Arbor Hole Size(in) | 1-1/4 In. |
| Color | Pink |
| Grade | Medium |
