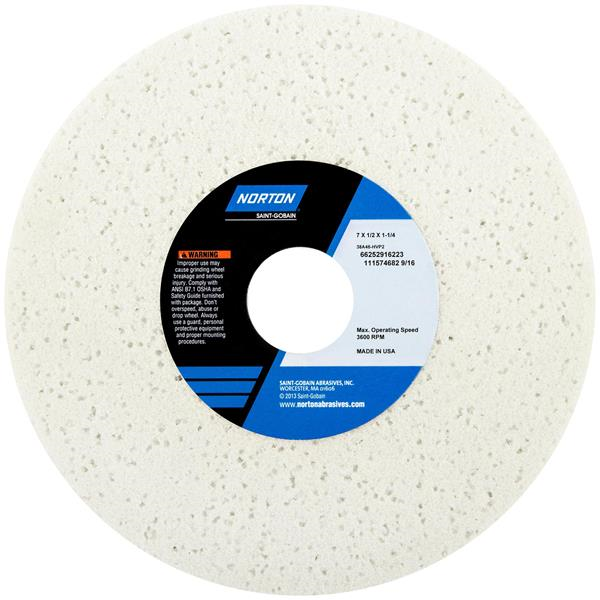

7 x 1/2 x 1-1/4 Inch 38A Toolroom Wheel Type 01 38A46-HVP2
- Item Code: 66252916223
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- The most friable aluminum oxide abrasive for cool and burn free cutting; ideal for heat sensitive applications with light to moderate feed rates
- Controlled porosity bond for increased chip clearance and maximum coolant flow; reduced loading; extremely cool cutting wet or dry in heat sensitive applications
- Durable bond post for maximum grain retention and form holding, less dressing; longer wheel life
- Maximum depth of cut for increased grain efficiency; consistent grinding action at high metal removal rates
- Consistent quality for excellent balance and dimensional accuracy time after time
Tech Specs
Back To Top| Specification | 38A46-HVP2 |
|---|---|
| Brand | Norton |
| Grade | Medium |
| Series | 38A |
| Wheel Type | Type 01 |
| Arbor Hole Size(in) | 1-1/4 In. |
| Diameter(in) | 7 In. |
| Thickness(in) | 0.500000 |
| Material | Aluminum Oxide |
| Thickness | 1/2 In. |
| Color | White |
| Grit | 46 |
| Max Operating Speed | 3600 |
