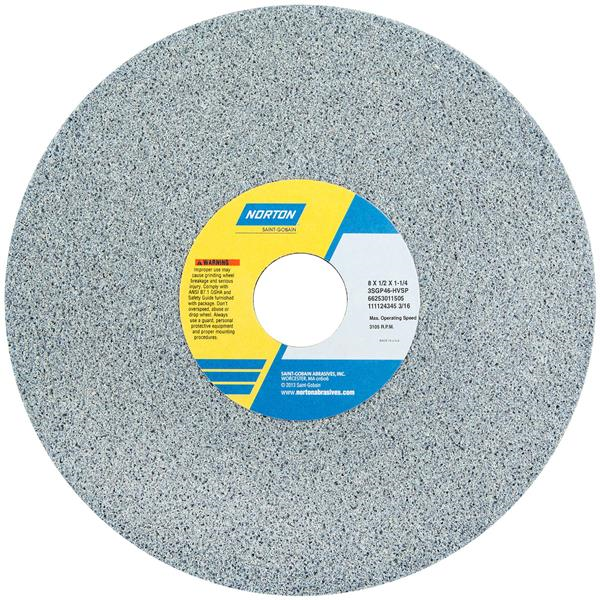

8 x 1/2 x 1-1/4 Inch SG Toolroom Wheel Type 01 3SGP46-HVSP
- Item Code: 66253011505
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- Exceptionally high-performance ceramic alumina and friable aluminum oxide abrasive blend for fast stock removal, cool, superior cutting; 3X - 5X more life than aluminum oxide wheels; double rough stock removal rate vs. conventional abrasives
- Proven porous vitrified bond, especially recommended for toolroom and surface grinding on medium to wide areas of contact and heat sensitive materials
- Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
- Recommended for: narrow area of contact, high grinding forces and very difficult to grind steels that have a very high hardness or tensile strength
- Best choice for high productivity, low total per-part grinding cost
Tech Specs
Back To Top| Specification | 3SGP46-HVSP |
|---|---|
| Grade | Medium |
| Max Operating Speed | 3105 |
| Arbor Hole Size(in) | 1-1/4 In. |
| Grit | 46 |
| Diameter(in) | 8 In. |
| Wheel Type | Type 01 |
| Color | Blue |
| Thickness(in) | 0.500000 |
| Thickness | 1/2 In. |
| Brand | Norton |
| Material | Ceramic Alumina |
