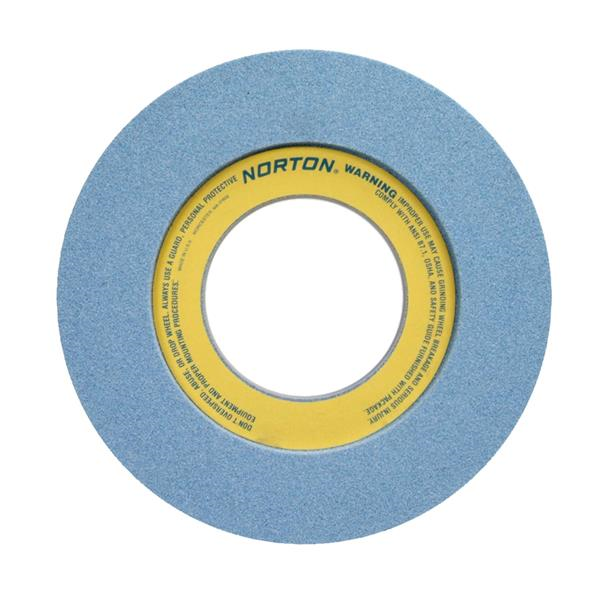

12 x 2 x 5 Inch SG Cylindrical Wheel Type 07 5SG46-JVS
- Item Code: 66253209930
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision, form-holding vitrified toolroom wheels maximize your productivity. Available in latest-generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- Exceptionally high-performing seeded gel ceramic alumina and friable aluminum oxide abrasive blend for fast stock removal, cool, superior cutting; 3X - 5X more life than aluminum oxide wheels; 2X stock removal rate vs. conventional abrasives
- High performance bond for versatility (for grinding high sped tool steels, hardened and soft steels, and aerospace alloys) and exceptional form holding
- Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
- Best choice for high productivity, low total per-part grinding cost
- Made in USA in ISO certified facility
- 5SG €“ Durable Norton SG and aluminum oxide blend €“ blue for high stock removal rates, excellent productivity, long wheel life, low overall grinding cost
- NORPOR 3SGR €“ Purple Norton SG and 48A abrasive blend with VP2 porous bond for maximum productivity in heat-sensitive, heavy stock removal operations
Tech Specs
Back To Top| Color | Blue |
|---|---|
| Specification | 5SG46-JVS |
| Arbor Hole Size(in) | 5 In. |
| Recess Depth A | 1/2 In. |
| Recess Diameter B | 7-1/2 In. |
| Thickness | 2 In. |
| Max Operating Speed | 2070 |
| Grade | Medium |
| Recess Diameter A | 7-1/2 In. |
| Thickness(in) | 2.000000 |
| Brand | Norton |
| Diameter(in) | 12 In. |
| Recess Depth B | 1/2 In. |
| Material | Ceramic Alumina |
| Grit | 46 |
| Wheel Type | Type 07 |
