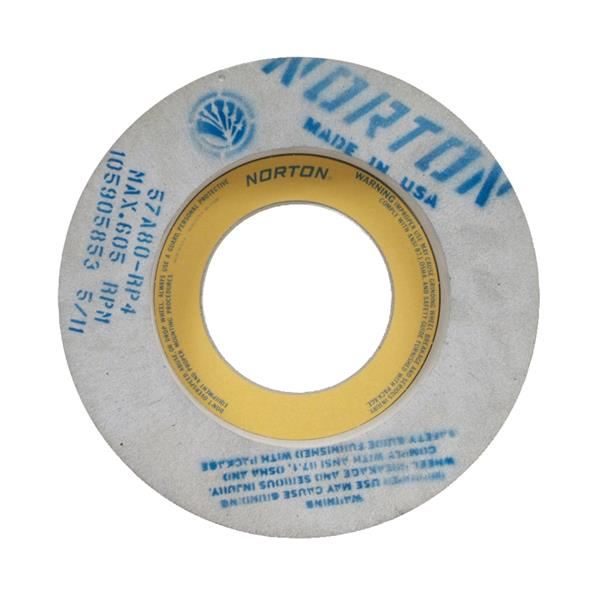

12 x 8 x 5 Inch 57A Centerless Feed Wheel Type 07 57A80-RP4
- Item Code: 66253222199
- Brand: Norton
- Unit Size: 1
Description
Centerless grinding is a production process that produces extremely close tolerances on metal cylindrical forms or parts. Centerless grinding is used on a wide variety of workpieces. The key components in the process are the grinding wheel, the work rest blade (used to support the work) and the regulating or ?feed? wheel (the drive mechanism for the workpiece).
Features
Back To Top- Tough, durable aluminum oxide abrasive
- Durable (more durable than rubber bond) plastic bond system
- Strong, all-purpose feed (regulating/workpiece driving mechanism) wheel for centerless grinding applications
- With the centerless wheel, quickly impart a cylindrical shape with minimum geometry loss to part being ground
- Made in USA in ISO certified facility
Tech Specs
Back To Top| Recess Depth A | 2-1/2 In. |
|---|---|
| Specification | 57A80-RP4 |
| Brand | Norton |
| Wheel Type | Type 07 |
| Color | Brown |
| Material | Aluminum Oxide |
| Recess Depth B | 1-1/2 In. |
| Thickness | 8 In. |
| Diameter(in) | 12 In. |
| Arbor Hole Size(in) | 5 In. |
| Max Operating Speed | 605 |
| Recess Diameter B | 7-1/2 In. |
| Grit | 80 |
| Series | 57A |
| Thickness(in) | 8.000000 |
| Grade | Fine |
| Recess Diameter A | 7-1/2 In. |
