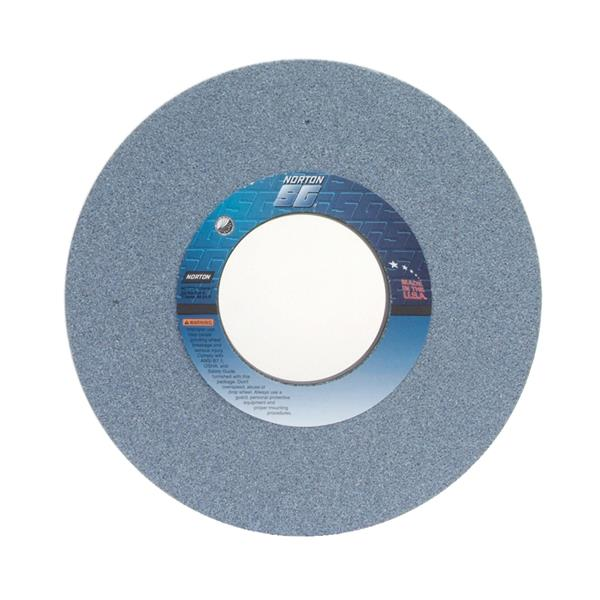

14 x 1-1/2 x 5 Inch SG Cylindrical Wheel Type 01 3SGP46-GVSP
- Item Code: 66253306780
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision, form-holding vitrified toolroom wheels maximize your productivity. Available in latest-generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- Exceptionally high-performing seeded gel ceramic alumina and friable aluminum oxide abrasive blend for fast stock removal, cool, superior cutting; 3X - 5X more life than aluminum oxide wheels; 2X stock removal rate vs. conventional abrasives
- Proven porous vitrified bond, especially recommended for toolroom and surface grinding on medium to wide areas of contact and heat sensitive materials
- Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
- Recommended for: narrow area of contact, high grinding forces and very difficult to grind steels that have a very high hardness or tensile strength
- Best choice for high productivity, low total per-part grinding cost
Tech Specs
Back To Top| Specification | 3SGP46-GVSP |
|---|---|
| Thickness | 1-1/2 In. |
| Wheel Type | Type 01 |
| Arbor Hole Size(in) | 5 In. |
| Color | Blue |
| Max Operating Speed | 1800 |
| Grit | 46 |
| Material | Ceramic Alumina |
| Thickness(in) | 1.500000 |
| Brand | Norton |
| Diameter(in) | 14 In. |
| Grade | Medium |
