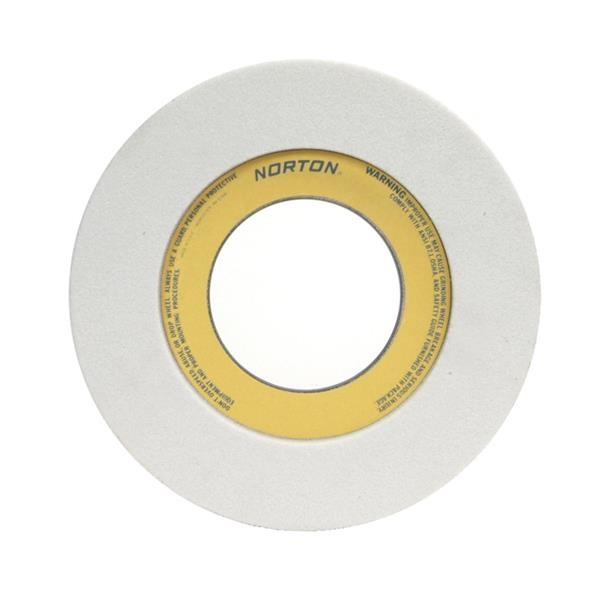

14 x 2 x 5 Inch 38A Toolroom Wheel Type 05 38A46-HVP2
- Item Code: 66253319949
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- The most friable aluminum oxide abrasive for cool and burn free cutting; ideal for heat sensitive applications with light to moderate feed rates
- Controlled porosity vitrified bond for increased chip clearance and maximum coolant flow, reduced loading and cool cutting wet or dry in heat sensitive applications
- Durable bond post for light to medium stock removal maximizes grain retention; less dressing; longer wheel life
- Versatile; good choice for light grinding a broad variety of tool steels
- Consistent quality for excellent balance and dimensional accuracy time after time
Tech Specs
Back To Top| Series | 38A |
|---|---|
| Thickness | 2 In. |
| Wheel Type | Type 05 |
| Brand | Norton |
| Diameter(in) | 14 In. |
| Arbor Hole Size(in) | 5 In. |
| Max Operating Speed | 2320 |
| Recess Depth A | 1/2 In. |
| Recess Diameter A | 8 In. |
| Specification | 38A46-HVP2 |
| Color | white |
| Grit | 46 |
| Material | Aluminum Oxide |
| Grade | Medium |
| Thickness(in) | 2.000000 |
