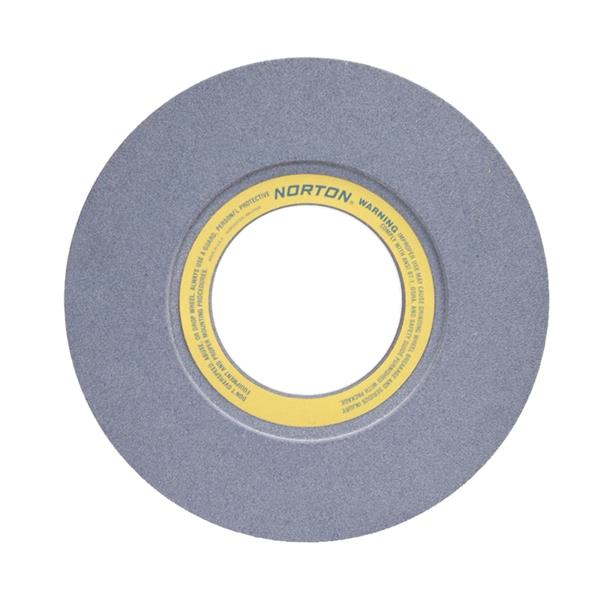

16 x 2 x 5 Inch 32A Cylindrical Wheel Type 01 32A46-J8VBE
- Item Code: 66253464995
- Brand: Norton
- Unit Size: 1
Description
Cylindrical wheels are used most often when the part is held between centers and in chucks. There are three methods of cylindrical grinding: plunge, traverse, and angular. Plunge grinding wheels are thrust or plunged into the part, traverse grinding wheels move across the part, and angular grinding wheels contact the part at an angle.
Features
Back To Top- Sharp monocrystalline 32A aluminum oxide purple grain is the industry's most versatile abrasive
- The most versatile vitrified bond, especially recommended for toolroom, cylindrical, and surface grinding
- Grinds with an exceptional cool, fast cutting action, requires minimum dressing
- Outstanding form holding
- Better choice for medium to heavy stock removal
Tech Specs
Back To Top| Specification | 32A46-J8VBE |
|---|---|
| Grade | Coarse |
| Thickness(in) | 2.000000 |
| Wheel Type | Type 01 |
| Arbor Hole Size(in) | 5 In. |
| Thickness | 2 In. |
| Material | Aluminum Oxide |
| Series | 32A |
| Color | Purple |
| Grit | 46 |
| Max Operating Speed | 2030 |
| Brand | Norton |
| Diameter(in) | 16 In. |
